Specification

Frequency Range 9kHz~300MHz
Mode Selector CISPR17, MIL-STD-220B
Analysis Mode L1, L2, CM, DM
Max RF Input Level 130dBuV (23dBm)
Input Dynamic Range 120dB
Input Power AC100V~240V, 50/60Hz,10w
Dimensions(mm) W391  D370  H216
Weight 9.4 kg
Built-in Module Spectrum Analyzer
Auto- Operating
  • Data scanning
  • Inspection Result
  • File Save

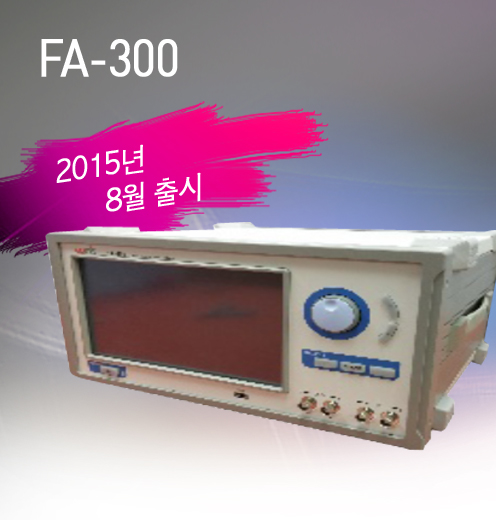

FA-300’s Features

  • EMI filter,Inductor or Capacitor characteristics analysis.- Operation is simple by integrating
  • Spectrum Analyzer,TG, Filter Analyzer in FA-300.
  •  Function to set Limit, decide Pass/Fail, save and recall of EUT’s spec.and print test reports.

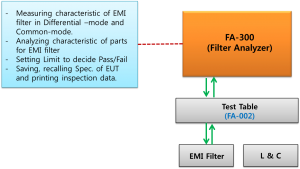

Measuring Configuration
