ETS-10

Specification

Standard Testing CISPR 16 & MIL-STD-461E/F
Frequency Range 9kHz~30 MHz
Analysis L1, L2, CM, DM
Power for EUT DC~60Hz, 250Vmax
Power for System AC240V 50/60Hz
Mechanisim 19″ Rack
Dimension(mm) W600  D750  H1400
Component

Spectrum Analyzer

EMI Analyzer

Impedance Module

LISN

Power Line Filter

Insulation Transfomer

CATALOG
Q & A

Key Characteristics of ETS-10



  • 9kHz ~ 30MHz frequency range.
  • Noise analysis in CM & DM, satisfying MIL-25D-461 AND cispr16 standards.
  • Theoretical Filter Design approach-extended applicable EMI filter components research-coil and capacitor.
  • Dramatic time saving in EMI solution process(EMI debugging)
  • Most suitable system configuration for R&D and Quality engineers.

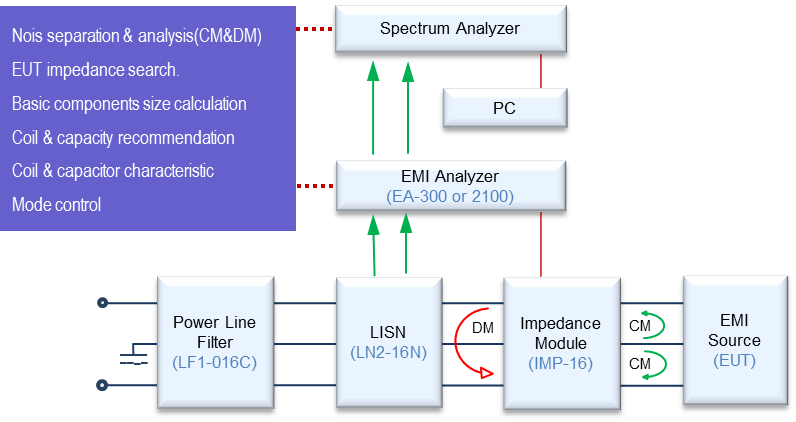

System Configuration
