MR-01

CATALOG
Q & A

Specification

Input Rated
Input Voltage Max 250V DC~60Hz
Max Current 16A
Shielding Effect
Magnetic Field      >70dB @150kHz
Electric Field >80dB @150kHz~30MHz
Plane Wave >80dB @30MHz~1GHz
Built-in Unit
LISN LN2-16N
Power Line Filter LF1-016C
Mechanical
Outside Size(mm) W790 D750 H400
Test Room Size(mm) W580 D575 H460
Weight about 145 kg

Key Features

  • Movable EMI chamber.
  • Pre-installed LISN,Power Line Filter
  • Maximized efficiency in application.
  • Minimized space requirement.

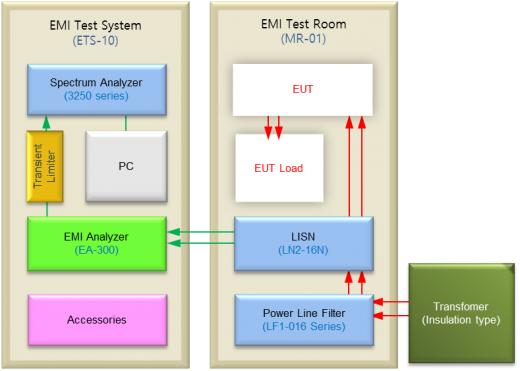

System Configuration
